Aramid Köşe Örgülü Grafitli PTFE Salmastra
Stock Code
JEGCACSU98

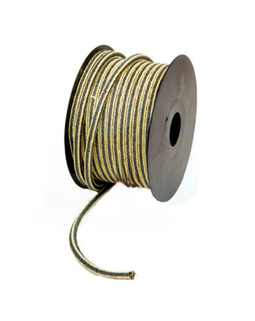

Aramid Corner Braided Graphite PTFE Packing
Product Code: S4501
Description: The packing is braided from graphite PTFE yarn and the corners are reinforced with aramid yarn. Compared to Aramid Corner Braided White PTFE Packing, this material provides better lubrication in high pressure working environments, better thermal conductivity and the possibility of using in larger areas.
Application Areas: This packing has the strength of aramid fiber, good thermal conductivity and low friction of graphite PTFE. It is widely used in piston pumps, mixers and valves used in petrochemical, paper and sugar industries.
Application Areas: This packing has the strength of aramid fiber, good thermal conductivity and low friction of graphite PTFE. It is widely used in piston pumps, mixers and valves used in petrochemical, paper and sugar industries.
Operating Temperature | -150°C ~ +280°C | |
| Pressure | Gear Pumps | 25 bars |
| Piston Pumps | 150 bars | |
| Valves | 200 bars | |
| Shaft Speed | 15m/s | |
| Ph Ratio | 2~12 | |
| Intensity | 1.45~1.65g/ cm3 | |
