Diyafram Lastiği
Category
Stock Code
XT22793DQM

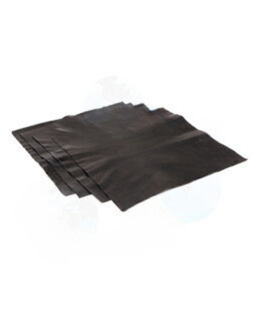

Diaphragm Rubber
Product Code: Diaphragm Rubber
Description: Rubber sheet is manufactured from many different rubbers such as SBR, NBR, CR, EPDM. Materials such as cotton, nylon, terylene are used as reinforcement material. Multiple layers are used depending on the purpose of use and material thickness. Generally, single layer is used in 0.50; 1; 1.5 mm thicknesses, and two layers are used in 2; 2.5; 3 mm thicknesses. Their surfaces can be very smooth or fabric-like. They are robust, easy to use and clean. They have good tear and oil resistance. While the rubber properties are preserved in the diaphragm rubber, the resistance against puncture and tearing is increased with the reinforcement material. Optionally, one layer of reinforcement fabric material can be added for every 1.6 mm of rubber thickness.
Application Area:
It is an excellent material for flooring and doors. It has a wide range of applications in the chemical industry, corrosion prevention technologies, electrical and electronics industry.
.Automotive
. Chemical and transportation industry
. Heavy duty machinery
. Oil and gas exploration
. In probing activities
.In oil refinery facilities
. In transportation works
Application Area:
It is an excellent material for flooring and doors. It has a wide range of applications in the chemical industry, corrosion prevention technologies, electrical and electronics industry.
.Automotive
. Chemical and transportation industry
. Heavy duty machinery
. Oil and gas exploration
. In probing activities
.In oil refinery facilities
. In transportation works
| TECHNICAL INFORMATION | |||||||||||||
| Size | Width | Thickness | Operating Temperature | Pull Muk. | Hardness Shore A | Elongation | Intensity | ||||||
| 5 – 20m | 1, 1.2-1.5mm | 2-40mm | -30~90°C | >3MPa | 50-80 | 200%-400% | 1.5 – 1.8 gr/cm3 | ||||||
