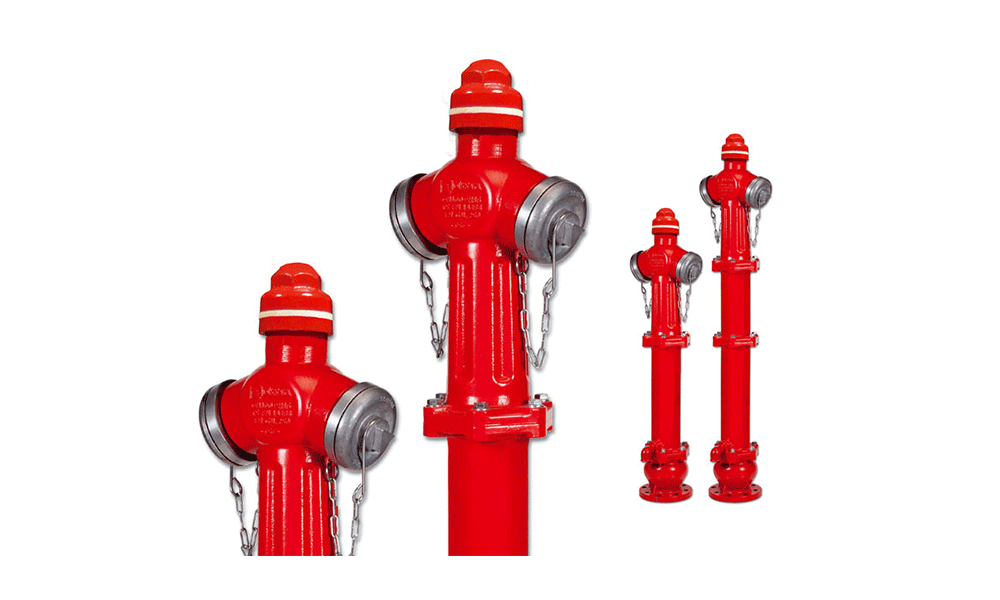

Above-ground fire hydrants are used to supply water to fire departments or fire response teams in factories, warehouses, industrial facilities, building perimeters, airports, military facilities, green areas, public areas, residential areas and anywhere that poses a fire risk.
Frangible Fire Hydrants, as with unbreakable fire hydrants, are used to supply water to fire trucks in factories, warehouses, building surroundings, residential areas and anywhere that carries a fire risk.
Frangible Fire Hydrant; Thanks to its specially designed connection shoes, it will break at a predetermined point as a result of the lateral impact it receives and the upper body will separate from the main body. In this case, the hydrant free arm automatic closing mechanism will ensure that the position remains closed when it is in the closed position, and will automatically switch to the closed position when it is in the open position.
TECHNICAL SPECIFICATIONS
Nominal Diameter DN 80 – 100
Nominal Pressure PN 16
Outlet Diameter Ø65 mm (2½”) TS-EN 12258, GOST (Optional)
Standard Standard: TS- EN14384 – Type A
Flange Standard TS ISO 7005-2 / TS EN 1092-2
Working Temperature -10 °C … +80 °C
Paint Electrostatic Epoxy Polyester Red – Type C
Option Type C (Fragile Type)
