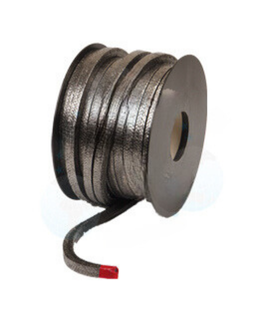

Pure Graphite Packings
Product Code: S5500
Description: Braided from low sulfur expanded graphite yarn reinforced with cotton yarn or glass fiber.
This packing provides good thermal conductivity, chemical resistance and high flexibility.
In addition, it does not damage shafts and spindles with its low coefficient of friction.
Corrosion Inhibiting Graphite Packings: Corrosion inhibitor protects the valves' drive shaft and shaft covers.
Provides cathodic protection against corrosion.
Application Areas: Graphite packings have a wide range of uses that can be used throughout a facility.
This material is used under high pressure and high temperature conditions where sealing is very important;
. In hydroelectric power plants, paper mills, power plants
. Valves and pumps used in refineries and industry
Used in expansion joints and mixers operating at high temperatures.
This packing provides good thermal conductivity, chemical resistance and high flexibility.
In addition, it does not damage shafts and spindles with its low coefficient of friction.
Corrosion Inhibiting Graphite Packings: Corrosion inhibitor protects the valves' drive shaft and shaft covers.
Provides cathodic protection against corrosion.
Application Areas: Graphite packings have a wide range of uses that can be used throughout a facility.
This material is used under high pressure and high temperature conditions where sealing is very important;
. In hydroelectric power plants, paper mills, power plants
. Valves and pumps used in refineries and industry
Used in expansion joints and mixers operating at high temperatures.
Operating Temperature | -220 °C - ~ +550 °C (+650 °C steam) | |
| Pressure, Shaft Speed | Gear Pumps | 20 bar, 20 m/s |
| Piston Pumps | 80 bar, 2 m/s | |
| Valves | 100 bar, 2 m/s | |
| Ph Ratio | 0~14 | |
| Intensity | 1.1~1.3g/ cm3 | |
Section mm2 | 5x5 | 6x6 | 8x8 | 10x10 | 11x11 | 12x12 | 14x14 | 16x16 | 18x18 | 20x20 | 25x25 |
| Gr. / m | 30.0 | 43.2 | 76.8 | 120.0 | 172.8 | 235.2 | 270.0 | 307.2 | 388.8 | 480.0 | 750.0 |
| Coil Weight Kg. / Coil | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 | 10 |
| Size: For packings with a density of 1.2 gr./cm3. | |||||||||||
