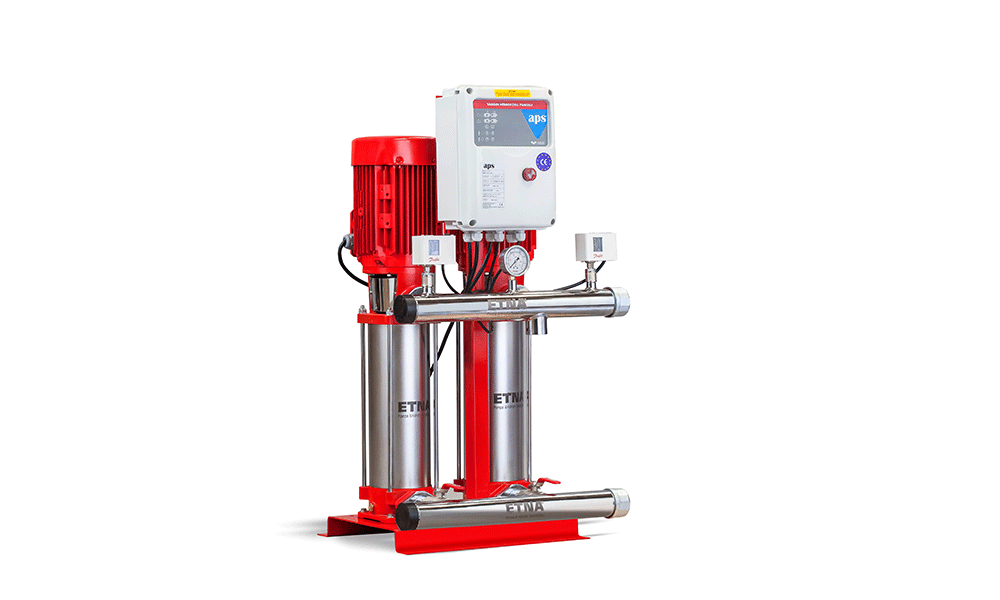

Konutsal Alarm Kitli Hidroforlar Y-KO Serileri

• It is used for fire-fighting systems of buildings such as villas, apartments, etc.

• In general practice in our country, according to the fire regulations, it is aimed to store enough water for at least 1 (one) hour until the fire brigade reaches the fire scene and to have at least 2 (two) fire cabinets in the building in active working order. According to the regulations on the protection of buildings from fire, each fire cabinet must have a flow rate of 100 lt/min and the fire cabinet hose lance at the last point must have a pressure of 40 mSS (4 bar). Fire hydrophore systems that provide this quality are generally selected to provide 2X12 m³/h & 80-90 mSS hydraulic values.

PUMP FEATURES

Body and Shaft Stainless Steel (AISI 304)

Fans and Diffusers Noryl

Mechanical Seal Carbon/Ceramic/NBR

Input-Output Body Cast Iron(GG25)/ Bronze(optional)

TECHNICAL SPECIFICATIONS

Protection against working without water Special bronze bearing resistant to working without water and protection with 5m long level floater

Protection-Control Panel Fully automatic weekly test system with sound-light alarm panel

Collectors Suction and discharge collectors are provided as standard.
