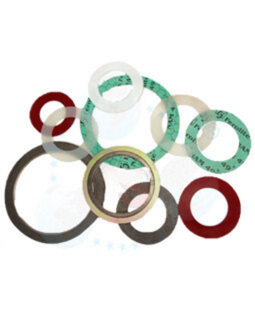

Valve and Flange Gaskets

Product Code: Valve and Flange Gaskets

Description: Flange gaskets are produced in accordance with international standards in our own production facilities. Gaskets can be manufactured in standard sizes (15 ~ 1000 mm) and non-standard special sizes from the ma materials introduced in our catalogue.

Application Area: Flange gaskets are produced in accordance with international standards in our own production facilities. It is possible to manufacture gaskets in standard sizes (15 ~ 1000 mm) and non-standard special sizes from the materials introduced in our catalog.

.Food
. Shipbuilding
.In the Chemical Industry
. In Fluid and Hot Water Installations
It is used in all sectors where sealing under high pressure is required.

SEAL DIMENSIONS DIN 2690						GASKET DIMENSIONS ASME B 16-21
DN	d1	PN 10	PN 16	PN 25	PN 40	Standard Pipe Size		Seal Inner Diameter Ø	Seal Outer Diameter Ø
DN	d1	d2				Standard Pipe Size			Pressure Category (Ib)
10	18	45	45	45	45	DN	Inch		#150	#300	#400	#600	#900
15	22	50	50	50	50	15	1/2	21	48	54	54	54	64
20	28	60	60	60	60	20	3/4	27	57	67	67	67	70
25	35	70	70	70	70	25	1	33	67	73	73	73	79
32	43	82	82	82	82	32	1 1/4	42	76	83	83	83	89
40	49	92	92	92	92	40	1 1/2	48	86	95	95	95	98
50	61	107	107	107	107	50	2	60	105	111	111	111	143
65	77	127	127	127	127	65	2 1/2	73	124	130	130	130	165
80	90	142	142	142	142	80	3	89	137	149	149	149	168
100	115	162	162	168	168	90	3 1/2	102	162	165	162	162	-
125	141	192	192	195	195	100	4	114	175	181	178	194	206
150	169	218	218	225	225	125	5	141	197	216	213	241	248
175	195	248	248	255	267	150	6	168	222	251	248	267	289
200	220	273	273	285	292	200	8	219	279	308	305	321	359
250	274	328	330	342	353	250	10	273	340	362	359	400	435
300	325	378	385	402	418	300	12	324	410	422	419	457	498
350	368	438	445	458	475	350	14	356	451	486	483	492	521
400	420	490	497	515	547	400	16	406	514	540	537	565	575
450	470	540	557	565	572	450	18	457	549	597	594	613	638
500	520	595	618	625	628	500	20	508	606	654	648	683	699
600	620	695	735	730	745	600	24	610	718	775	768	791	838
700	720	810	805	830	850
800	820	915	910	940	970
900	920	1015	1010	1040	1080
1000	1020	1120	1125	1150	1190
1200	1220	1340	1340	1360	1395
1400	1420	1545	1540	1575	1615
1600	1620	1770	1760	1795	1830
